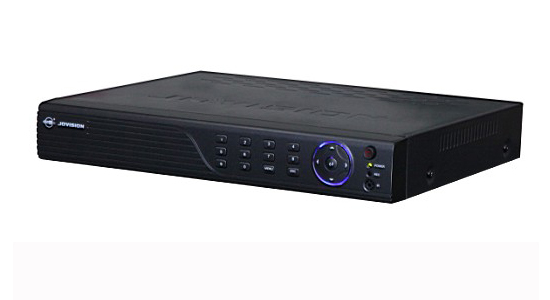

JVS-D6000-S2 series DVR includes 4ch, 8ch and 16ch.standalone DVR,
which is an ideal product for video monitoring, compression, storage,
transmission, PTZ control, Motion Detection, Alarm management, etc.

JVS-D6000-S2 adopts Jovision patented CloudSEE technology with the great
feature of Plug&Play, completely free users from complicated network settings.
Users just need to input the unique ID for remote viewing.

Jovision professional R&D team provides powerful and easy-to-use remote
viewing APPs that can be used on PC, or mobile phones.

JVS-D6000-S2, your best choice DVR! Inquire us today!

Specifications:
Model/Specification JVS-D6016-S2
Previewing Video Input 16ch BNC
Video Standard PAL/NTSC
Layout 1/2/4/8/9/16
Privacy Mask Yes
Night Mode Yes
OSD Length 16
Recording Compression H.264
Compression Standard 2ch D1
Recording Mode Manual/Scheduled/Motion Detection/Alarm
Overwriting Mode Recycling/Stop Recording
Pre-alarm Recording Not support
After-alarm Recording 1S — 999S
Playback Search Mode Ch No./Record Type/Date(Single or Combine)
Mode 8ch,2D1+6CIF
Playback Control Single frame, Quick backward, Quick forward
Audio Audio In 2ch RCA
Audio Out 1ch RCA
Audio Compression Mode G.711
Monitoring VGA Resolution 1024×768, 1280×1024
Video Out 1ch VGA, 1ch CVBS,1ch HDMI
O/S Imbedded Linux
Memory 256MB
Peripheral USB Recovery Supports
USB Interface 2 USB2.0
Control Mouse, Remote Control, Front Panel
On/Off Control by Remote Control Yes
Storage SATA HDD port 1
USB(backup) FAT32 USB disk or portable hard disk
File format Record:*.MP4,Log: *.txt, Picture:*.bmp,
Log Quantity Upto 2000 pcs
Security Users 64 local users /64 Network users
Authorization Control Yes
Network Ethernet 1 RJ-45 Port,10M/100M self-adjustable
3G Module Supports(Module model should be confirmed with supplier)
Transmission Mode Supports Sub-stream
Connections Upto 24ch
MAC Display Yes
Protocol TCP/IP, DHCP, PPPoE, UDP
Auto Dial (3G/ADSL) Supports
Remote Monitoring Through PC Software/IE/Smart Phone
Smart Phone Smart Phone O/S Android/iOS
Protocol TCP/UDP
Alarm Alarm In 4 Groups,32ch,Needs Alarm-in Module
Alarm Out 4 Groups,32ch,Needs Alarm-out Module
Video Lost Alarm Supports
Alarm Snapshot Supports
Alarm Methods Buzzer/Alarm device/PTZ call, send alarm to client-end /E-mail alarm
PTZ Interface RS-485
PTZ Preset Points 255
Others Dimension (W×H×D) 295×45×235mm
Weight (Without HDD) ≤1.5kg


Features:
1. CloudSEE technology, one-key for remote viewing, no need to do DDNS, no need for port forwarding
2. HDMI, high resolution
3. With user-friendly GUI and various functions such as Digital Zoom, Email Alert,
4. Supports Android Phone and iOS remote monitoring. Please search keyword: CloudSEE for free APP.
