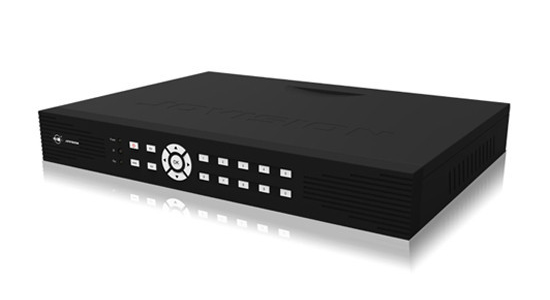

Jovision JVS-D7200 series network DVR is newly released by Jovision.
JVS-D7200 embedded with Linux O/S and advanced processor applies the
standard H.264 compression algorithm.

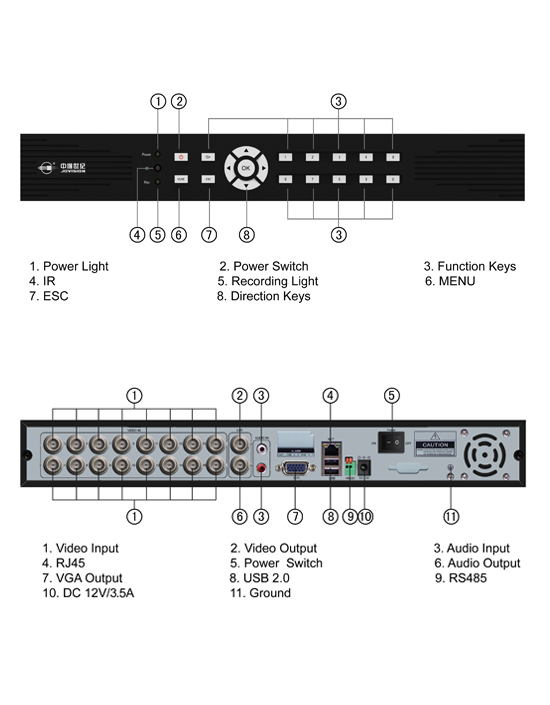

JVS-D7200 is integrated with fruitful interfaces to meet customers’
various requirements like the RJ45 10M/100M Ethernet Port ,USB2.0
port and RS485 PTZ control port etc.

JVS-D7200 is developed with the outstanding features like video/audio
capture, compression, storage, network transmission, PTZ control,
alarm detection, remote surveillance, thunder-proof, mobile phone monitoring, etc.

JVS-D7200 is based on Jovision patented CloudSEE technology which
makes it simple and convenient for installing and operating.



Functions:
Featured Functions:
1.Plug&play, no need for DDNS,no need for port mapping and no need for static IP.
2. Support iPhone, Android, Symbian, and Java Mobile Viewing
3. Support Snapshot and Snapshot Management
4. Function to set the rights of local users and network users
5. Parameters of each channel can be set separately
6. Support Audio talk between host-end and client-end
7. Support software update (USB Device, FTP and Jovision Website)
8. Showing MAC address
9. Windows classic features, user-friendly and easy for operation
10. Lightening-proof function
11.OSD location and content changeable

Previewing:
1. Support PAL/NTSC
2. Previewing Resolution: D1
3. Adjust video parameters of every channel individually
4. Support up to 4 privacy Areas in each channel
5. Support 1/4 channels previewing

Compression:
1. Use H.264 compression standard and adjustable compression quality
2. Compression/Playback Resolution: CIF
3. Support Audio and Video compression simultaneously

Network:
1. Use CloudSEE technology, easy operation, high connection rate and good
transmission effect
2. Use Client-end, IE and mobile phone for remote-viewing
3. Support remote-viewing, remote-recording, download remote-recording files,
remote-management and remote PTZ control
4. Automatically get network parameters, support PPPoE and remote connection statistics
5. Support Web Service

Recording:
1. Support manual recording, schedule recording, motion detection recording
and alarm recording
2. Adjustable packaging time of recording files
3. Support remote-recording
4. Support audio recording

Playback:
1. Search recording file according to channel, time and recording type
2. Single channel or 4 channels playback
3. Multi-level fast or slow playing, Pause and Single Frame Play, 4 channels
synchronous operation
4. Show the status of playback
5. Support remote playback
6. Support audio playback

PTZ control:
1. Support exchanging PTZ control orders, Convenient for engineering works
2. Support pre-setting locations and software cruise of high dome camera
3. Support several main PTZ protocol
4. Operate the inter menu of camera

Backup:
1. Backup recording files into USB Device
2. Backup system log into USB Device

Alarm:
1. Support Motion Detection Alarm, up to 4 areas in each channel.
2. Support video losing alarm.
3. Adjustable alarm duration.
