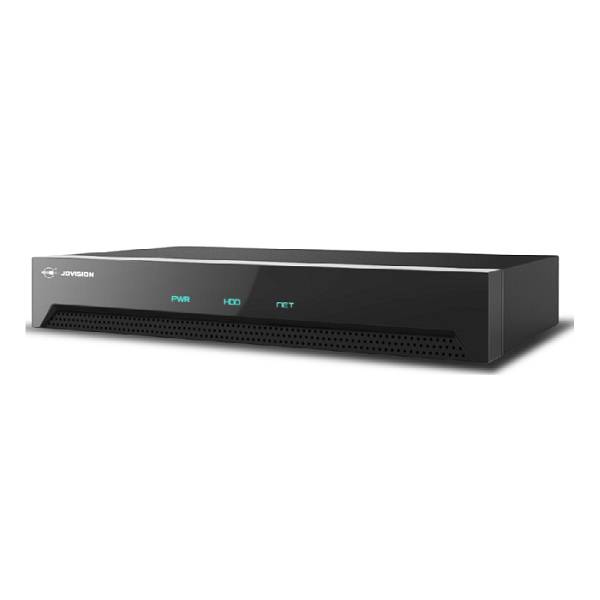

The new model JVS-D7804-HV DVR independently developed by Jovison Ltd,
support cloudSee and dual-stream technology, adopting H.264 compression
algorithm and Linux real-time operating system. Video output transmit via
HDMI ports with features of excellent connection rate, good transmission
effect, easy operation, etc. It is optimal products for network remote
monitoring, integrated with various practical functions, such as audio
and video playback, network transmission, and alarm management. It is
widely used in school, factory, supermarket, bank, traffic, community,
warehouse, water conservancy and other fields.

Jovision HVR Features:

1.Tri-Hybrid:Analog+HD CVI+IPC,All in one.
2.Best ability of compatibility:D1+1920H+1080P;
3.CloudSEE technology,one-key remote and network plug & play.
4.H.264 Video compression technology.
5.Support ONVIF ,compatible with other manufacturers IPC.
6.Support audio compression to achieve real-time video monitoring function.
7.search and add IPC automatically with zero operation.
8.MP4 record file format.

Model/Specification   &nbsnbsp;		JVS-D7804-HV
Video&Audio	Video Input	4CH BNC
	Video Output	HDMI(1920*1080/1440*900/1280×1024/1024×768)  VGA（1920*1080/1440*900/1280×1024/1024×768）  CVBS（PAL：720×576/NTSC：720×480）
	Audio Input	4CH RCA
	Audio Output	1CH RCA
	Video Compression	H.264
	Encoding	DVR Mode:4CH 1920H/4CH 1280H  NVR Mode:4CH 1080P  Hybrid Mode:  1920H×2+1080P×6/1280H×6+1080P×2/1280H×4+1080P×4
	Recording Resolution	1080P/1920H
	Video BitRate	768kbps～8192kbps
	Audio Compression	G.711
Storage	HDD Type	SATA Interface
	HDD Number	2pcs（up to 4T/pcs）
	File Format	log：*.txt/picture：*.bmp/record：*.mp4
	Log Number	2000
	USB（backup）	Support U disk/Mobile HDD  FAT32 format
Record	Record Type	Manual,Scheduled,Alarm,Motion Detection
	Record Mode	Cyclic Covering/Stop Recording
	Playback Control	Play, Pause, Stop, Rewind, Fast play, Slow play, Digital zoom
	Search Mode	All/Channel/Record Type/Date(Alone or Combined query)
Network	Ethernet	10M/100M Adaptive
	3G wireless network card	coming soon
	Dual Stream	Support
	Max Remote viewing channel	28CH
	Protocol	TCP/IP，DHCP，PPPoE，UDP
	WIFI Module	N/A
	AutoDial	N/A
	Client-end	Cloudsee/WebCC/Android/IOS
External	Network	1 RJ45 10M/100M adaptive Ethernet Interface
	USB Interface	2 USB 2.0 Interfaces
	Serial Interface	1 RS-485 interface
	Operation device	Mouse/Remote Control/Front Panel
	Remote Control	N/A
	Alarm In	4 groups，32CH external alarm input box
	Alarm Output	4 groups，32CH external alarm output box
Smart Phone	Mobile OS	Android/IOS
	Support Protocol	TCP/UDP
Features	Screen Layout	1/2/4 Screens
	Alarm notification	Buzzer/Alarm device/PTZ call, Send alarm to client-end/E-mail alarm
	Digital Zoom	Support
	USB Recovery	Support
	Voice Intercom	Support
	Night Vision Mode	Support
	Privacy Mask	Support
	Video Loss Alarm	Support
	Alarm Snapshot	Support
	SyncPlayback	4CH 1280H/4CH 1080P
General	Working Temperature	-10℃～+55℃
	Working Humidity	10%～90%
	Power Supply	DC12V
	Power	≦15W（HDD not included）
	Language	Multi-Language
	Size(W×H×D)(mm)	295×45×235
	Weight(g)	≤1080g
