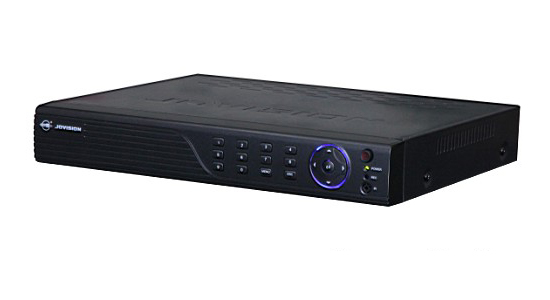

The JVS-D6000-S2 series DVR is cost-effective standalone DVR. It
includes two models JVS-D6004-S2 4CH DVR and JVS-D6008-S2 8CH DVR.
This series of DVR supports CloudSEE solution(One key to connect/
Plug&Play); adopts dual stream, H.264 compression, embedded Linux
real time O/S; Full D1 compression/playback, HDMI video output;
Integrates video capture, storage, compression, display, network
transmission, remote management, motion detection, remote PTZ
control, external alarm input and other functions.


Model/Specification JVS-D6004-S2
Video Input 4ch BNC
Video Standard PAL/NTSC
Layout 2001-2-4
Privacy Mask Yes
Night Mode Yes
OSD Length 16
Compression H.264
Compression Standard All D1
Recording Mode Manual/Scheduled/Motion Detection/Alarm
Overwriting Mode Recycling/Stop Recording
Pre-alarm Recording Not support
After-alarm Recording 1S — 999S
Search Mode Ch No./Record Type/Date(Single or Combine)
Mode 4ch and 4D1
Playback Control Single frame, Quick backward, Quick forward
Audio In 2ch RCA
Audio Out 1ch RCA
Audio Compression Mode G.711
VGA Resolution 1024×768, 1280×1024
Video Out 1ch VGA, 1ch CVBS,1ch HDMI
Imbedded Linux
Memory 256MB
USB Recovery Supports
USB Interface 2 USB2.0
Control Mouse, Remote Control, Front Panel
On/Off Control by Remote Control Yes
SATA HDD port 1
USB(backup) FAT32 USB disk or portable hard disk
File format Record:*.MP4,Log: *.txt, Picture:*.bmp,
Log Quantity Upto 2000 pcs
Users 64 local users /64 Network users
Authorization Control Yes
Ethernet 1 RJ-45 Port,10M/100M self-adjustable
3G Module Supports(Module model should be confirmed with supplier)
Transmission Mode Supports Sub-stream
Connections Upto 16ch
MAC Display Yes
Protocol TCP/IP, DHCP, PPPoE, UDP
Auto Dial (3G/ADSL) Supports
Remote Monitoring Through PC Software/IE/Smart Phone
Smart Phone O/S Android/iOS
Protocol TCP/UDP
Alarm Alarm In 4 Groups,32ch,Needs Alarm-in Module
Alarm Out 4 Groups,32ch,Needs Alarm-out Module
Video Lost Alarm Supports
Alarm Snapshot Supports
Alarm Methods Buzzer/Alarm device/PTZ call, send alarm to client-end /E-mail alarm
PTZ Interface RS-485
PTZ Preset Points 255
Dimension (W×H×D) 295×45×235mm
Weight (Without HDD) ≤1.5kg


Features:

1. CloudSEE technology, one-key for remote viewing, no need to do DDNS, no need for port forwarding
2. HDMI, high resolution
3. With user-friendly GUI and various functions such as Digital Zoom, Email Alert,
4. Supports Android Phone and iOS remote monitoring. Please search keyword: CloudSEE for free APP.
