Brand-new State-of-the-art PCB Design
Comprehensive improvement of protection Level
Optimal Conductive & Heat Dissipation Effect
DWDR&3D DNR&AGC&BLC
Intelligent analysis for 1.3MP
Corridor mode for 2.0MP
IR range: 2PCS Array Lights upto 40M
Board Lens 3.6mm, 6mm optional/F2.0
Case: Plastic

Jovision IPC Features:
1. Video resolution:1.3MP.compression standard:h.264/JPEG.
2. 9V-21V Super Wide Working Voltage Range,Optimal surge protection.
3. IR cut filter with auto switch for day/night function.
4. Digital 3D DNR,Digital WDR,ROI,Defog,makes image clearer and more fluent.
5. Tri-streams for resolution,frame rate,video quality adjustment.
6. Support IP self-adaption function.
7. Support ONVIF protocol(2.4),compatible with other manufacturers products .
8. POE optional.

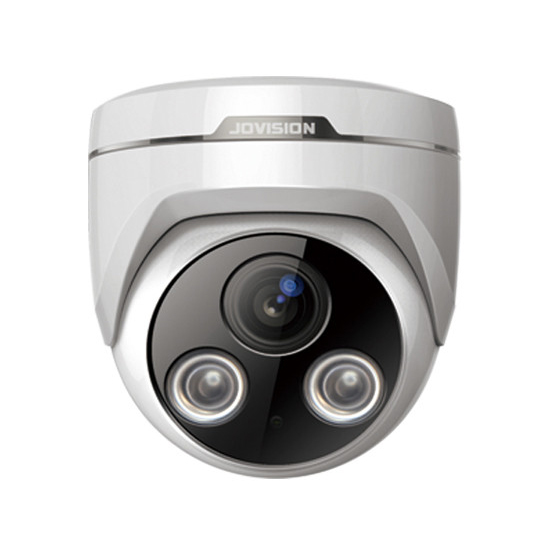

Model/Specification		JVS-N73-HY
Camera	Image Sensor	1/3″CMOS
	Resolution	1280×960
	Pixels	1.3MP
	Compression	H.264/JPEG
	Frame Rate	25fps～30fps
	Bitrate	204Kbps～6Mbps
	Synchronization	Internal
	SNR	55.7dB
	Min Illumination	0Lux(IR ON)
Lens	Lens Mount	M12
	Lens	4mm、6mm、8mm Optional
	Viewing Angle	4mm:96.85°、6mm:57.15°、8mm:41.8°
	Focus Control	Manual
Function	Exposure Mode	Auto
	Gain Control	Auto
	White Balance	Auto
	Digital noise reduction	3D DNR
	OSD	Support
	Network TimeSyn	Support
	QR Code	Support generate device qr code  for scanning to add
	Scheduled Restart	Support
	ROI	Support
	IR Sensitivity	Adjustable
	Defog	Support
	Privacy Mask	Support 4 rectangle areas
	Motion Detection	Support
	Video Adjust	Supports contrast, brightness,  saturation, sharpness adjustment
	Scene	Support Indoor、Outdoor、Default、  Soft scenes
	Day & Night	IR cut filter with auto switch，  Support Color to Black
	Electronic screen	Supprot Exposure time setting,  solve view electronic screen problem
	Night Self-Adaption	Support
	Wide Dynamic Range	Digital WDR
	Image setting	Mirror、Rotate
	IP Self-Adaption	Support
	Alarm	E-mail、Client
	Remote Operation	System、Stream、User、Network Management
	External Interface	Support Audio Input
Network	Ethernet	1 RJ45 10M/100M Adaptive Ethernet Interface
	Tri-Stream	Supprot
	Protocol	Support HTTP,TCP/IP,ICMP.RTSP,RTP,UDP,RTCP,  SMTP,FTP,DHCP,DNS,PPPOE
	System Compatibility	ONVIF 2.4
	Transmission	Internal Cloudsee Protocol
	Browser	IE8+,Chrome18+,Firefox5.0+,Safari5.02+ browsers
	Connection	32CH
	User Permission	Up to 13 users，Three level authority：  Administrator、User、Visitor
General	Infrared Lamp	2 Lattice Lamps
	IR Distance	20m～40m
	Power Supply	DC 12V/3A
	PoE Power	Optional
	Working Temperature	-20℃～+55℃
	Working Humidity	10%～90%
	Power	Day：＜3W     Night：＜6W
	Material	Plastic

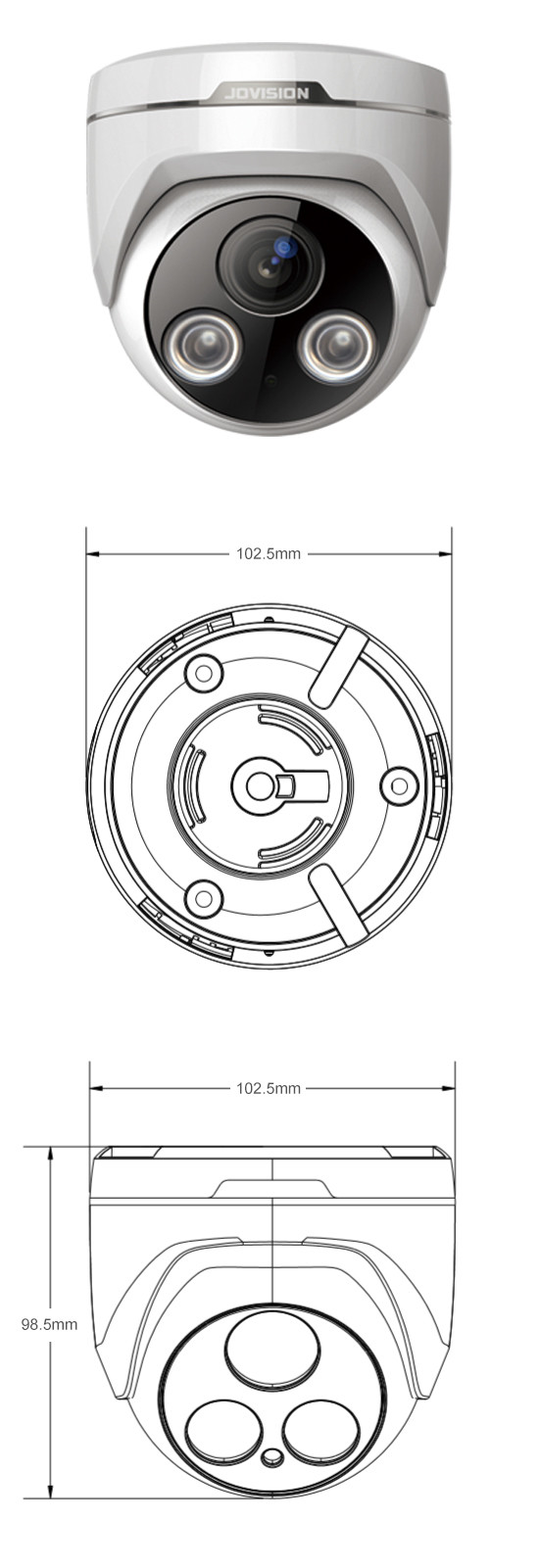

	Size((W×H×D)（mm）	102.5×98.5
	Weight（g）	220g
	Installation	Ceil Mounting
