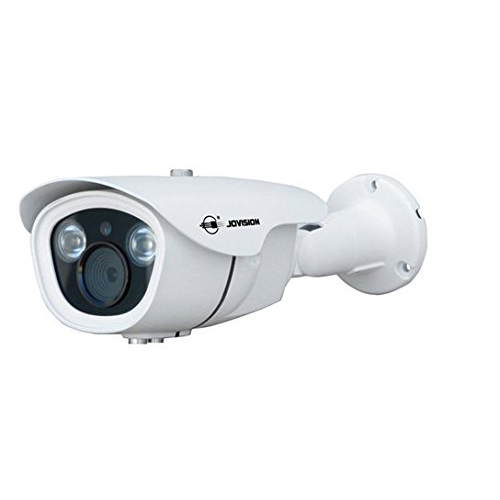

1.3MP Vari-Focal 2.8mm~12mm 960P Cloudsee HD IP Camera (JVS-N4FL-HT-V)
Product Description
Jovision IPC Features:1. Video resolution: 1.3MP.compression standard:H.264/JPEG.
2. Smart function:Defense Area,Trip Line.
3. IR cut filter with auto switch for day/night function.
4. Digital 3D DNR,Digital WDR,ROI,Defog,makes image clearer and more fluent.
5. Tri-streams for resolution,frame rate,video quality adjustment.
6. Support IP self-adaption function.
7. Support ONVIF protocol(2.4),compatible with other manufacturers products.
8. POE optional.
9. 2.8mm-12mm vari-focal
Scenarios:
Large warehouses, departments, docks, squares, schools, railway stations, parks etc.
Model/Specification | JVS-N4FL-HT | |
Camera | Image Sensor | 1/3″CMOS |
Resolution | 1280×960 | |
Pixels | 1.3MP | |
Compression | H.264/JPEG | |
Frame Rate | 25fps | |
Bitrate | 204Kbps~6Mbps | |
Synchronization | Internal | |
SNR | 55.7dB | |
Min Illumination | 0Lux(IR ON) | |
Lens | Lens Mount | CS |
Lens | 2.8mm~12mm | |
Viewing Angle | 2.8mm:117°,12mm:28° | |
Focus Control | Manual | |
Function | Exposure Mode | Auto |
Gain Control | Auto | |
White Balance | Auto | |
Digital noise reduction | 3D DNR | |
OSD | Support | |
Network TimeSyn | Support | |
QR Code | Support generate device qr code for scanning to add |
|
Scheduled Restart | Support | |
ROI | Support | |
IR Sensitivity | Adjustable | |
Defog | Support | |
Privacy Mask | Support 4 rectangle areas | |
Motion Detection | Support | |
Video Adjust | Supports contrast, brightness, saturation, sharpness adjustment |
|
Scene | Support Indoor、Outdoor、Default、 Soft scenes |
|
Day & Night | IR cut filter with auto switch, Support Color to Black |
|
Electronic screen | Supprot Exposure time setting, solve view electronic screen problem |
|
Night Self-Adaption | Support | |
Wide Dynamic Range | Digital WDR | |
Image setting | Mirror、Rotate | |
IP Self-Adaption | Support | |
Alarm | E-mail、Client | |
Remote Operation | System、Stream、User、Network Management | |
External Interface | Support Audio Input | |
Network | Ethernet | 1 RJ45 10M/100M Adaptive Ethernet Interface |
Tri-Stream | Supprot | |
Protocol | Support HTTP,TCP/IP,ICMP.RTSP,RTP,UDP,RTCP, SMTP,FTP,DHCP,DNS,PPPOE |
|
System Compatibility | ONVIF 2.4 | |
Transmission | Internal Cloudsee Protocol | |
Browser | IE8+,Chrome18+,Firefox5.0+,Safari5.02+ browsers | |
Connection | 32CH | |
User Permission | Up to 13 users,Three level authority: Administrator、User、Visitor |
|
General | Infrared Lamp | 2 Lattice Lamps |
IR Distance | 20m~70m | |
Power Supply | DC 12V | |
PoE Power | Optional | |
Working Temperature | -20℃~+55℃ | |
Working Humidity | 10%~90% | |
Power | Day:<3W Night:<6W | |
Material | Aluminum | |

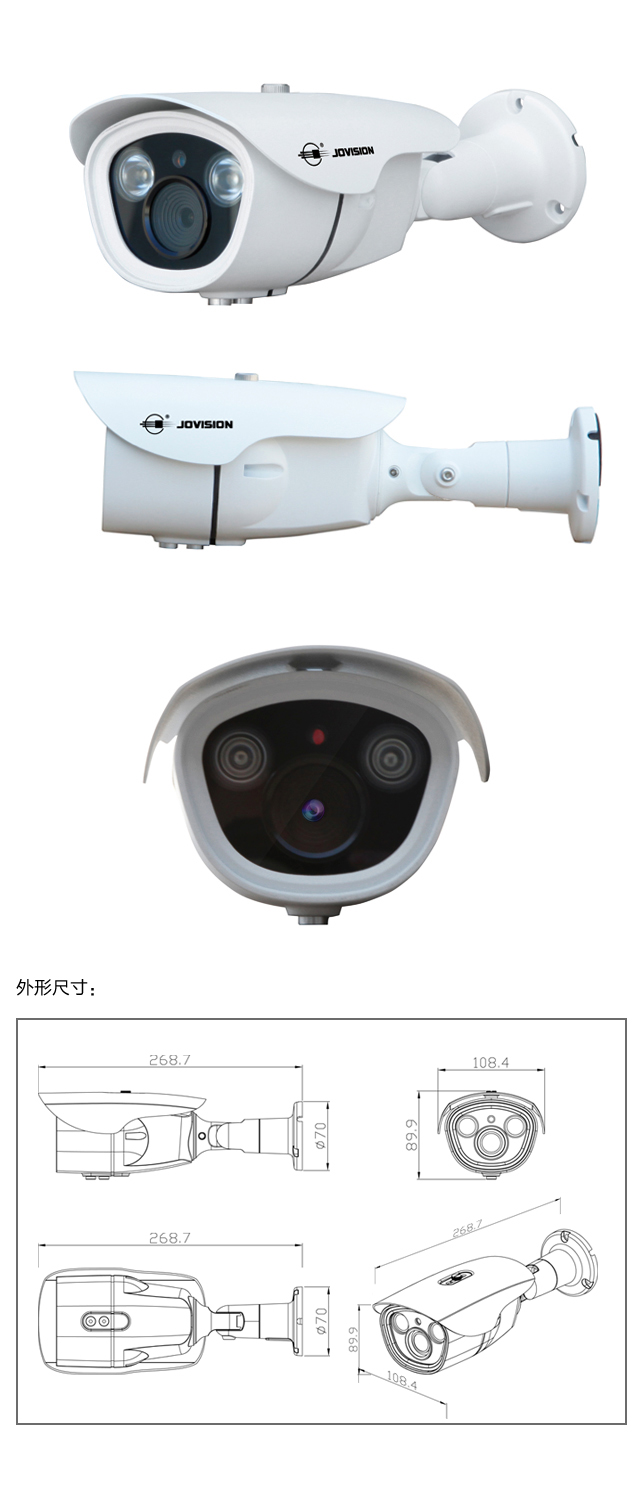

Size((W×H×D)(mm) | 108.4×89.9×268.7 | |
Weight(g) | 660g | |
Installation | Rack Mounting |
